Pokémon Reinforcement Learning

Training an agent to play a simplified Pokémon game using reinforcement learning

Overview

This project explores the use of reinforcement learning (RL) to train an agent to play a simplified version of Pokémon. Specifically, we implement Q-learning in a simulated environment to train the agent. The agent currently uses an epsilon-greedy policy for exploration, balancing between exploiting known strategies and exploring new ones. Future extensions could include more advanced exploration techniques such as Thompson Sampling to improve learning efficiency.

Environment Design

The environment simulates a simplified Pokémon-style battle. Both the agent and the opponent begin with 20 hit points (HP), which cannot exceed this amount during the game (even after healing).

At each turn, the agent can choose one of the following three actions:

  • Attack – Deal 1 to 5 HP of damage to the opponent, sampled uniformly at random
  • Heal – Restore 1 to 5 HP of its own health, sampled uniformly at random
  • Mesmerize – With 20% probability, render the opponent unable to act until they are attacked by the agent

The opponent’s policy is designed to approximate optimal behavior and operates as follows:

  • The opponent attacks if either:
    • The opponent’s HP is above 5
    • The agent’s HP is below 4
  • Otherwise, the opponent Heals

The opponent does not have access to the Mesmerize move. When attacking or healing, it follows the same uniform random probabilities (1–5 HP) as the agent.

Agent Design

The RL agent uses:

  • Q-learning as the primary training algorithm
  • Epsilon-greedy exploration with decay to shift toward exploitation
  • A simple tabular state-action representation

There is no guarantee that the agent has explored all the states during learning, even with epsilon greedy exploration. For example, see the plot below of the state space after Q-learning using (agent_hp, opponent_hp, opponent_mesmerized) as the axes. All of the holes in the grid correspond to unexplored states.

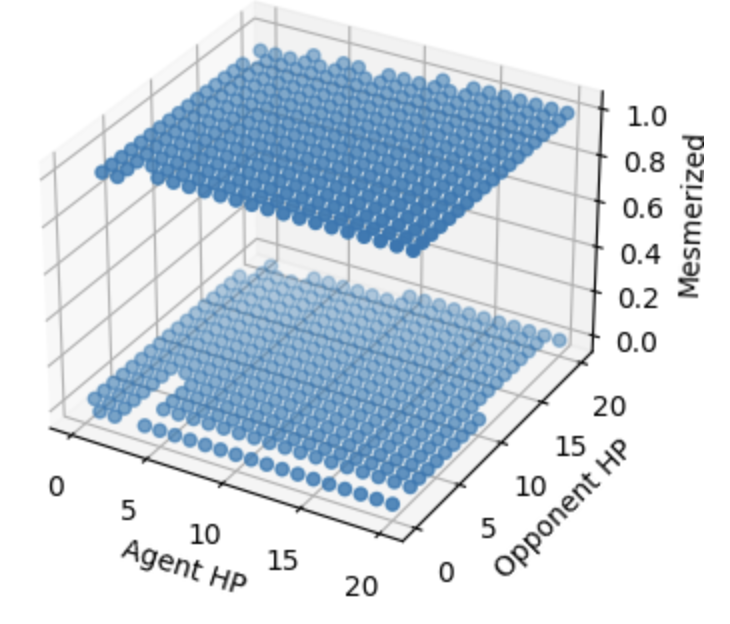

Figure: Coverage of the state space after training. White holes in the grid indicate states never visited during training.

To address this, if the agent finds itself in an unexplored state during the course of the game, we will play the best move in the nearest explored state using Euclidean distance in the (agent_hp, opponent_hp, opponent_mesmerized) state space. This works well since the idea that the agent will act the same in similar states (i.e. similar agent_hp, opponent_hp, opponent_mesmerized) is likely a reasonable assumption.

Results & Insights

  • The agent learns to prioritize healing when low on HP
  • The agent’s win rate jumps from 41% to 76% when the mesemerize probability is increased from 20% to 80%.
  • Certain strategies emerge from the agent’s learning phase. For example, when the agent is low on HP, it tends to try to mesmerize the user and spend several turns healing instead of attacking, much like a human player would.

More Details

You can view the source code and play against the agent here.
